Model 5CL9G-1G-CD-SFF is a a band pass filter centered at 9000MHz. The nominal bandwidth is 1000MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 9000 MHz
Insertion Loss: 1 dB
Bandwidth: 1000 MHz
VSWR: 1.5:1
Rejection: 6 Pole Response
Connectors In/Out: SMA (F/F)

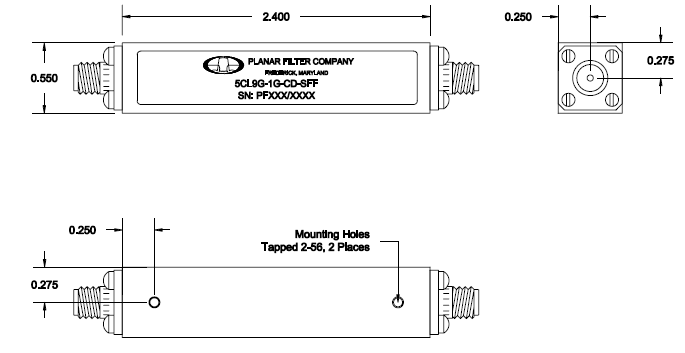

Size: 2.4"L x 0.55"W x 0.5"H
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
