6BP2000-500-1A-PP Preliminary
Bandpass Filter

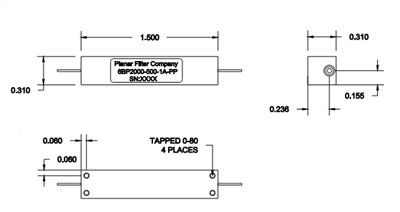

Quantic PMI Model 6BP2000-500-1A-PP is a bandpass filter centered at 2 GHz with a nominal bandwidth is 0.5 GHz. Package size is 1.50" x 0.31" x 0.31" outfitted with PC pins.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 2 |
| Bandwidth (GHz): | 0.5 |
| Insertion Loss (dB): | 0.8 dB |
| Insertion Loss (Pass Band): | 0.8 dB |
| Rejection: | 6 Pole Response |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | PC Pins |
| Size: | 1.50" x 0.31" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -40 °C to +100 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
