6C6500-130-CD-SFF Preliminary
Bandpass Filter

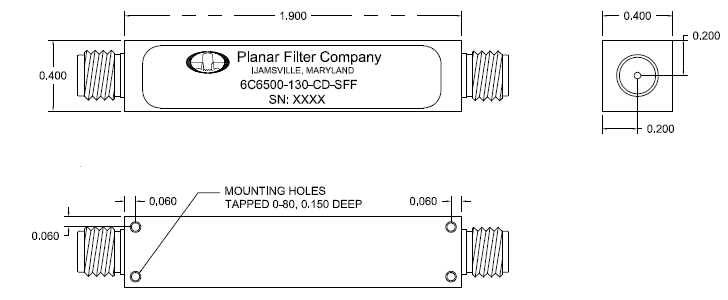

Quantic PMI Model 6C6500-130-CD-SFF is a bandpass filter centered at 6.5 GHz with a nominal bandwidth of 0.13 GHz. Package size is 1.90" x 0.40" x 0.40" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 6.5 |
| Bandwidth (GHz): | 0.13 |
| Insertion Loss (dB): | 2 dB |
| Insertion Loss (Pass Band): | 2 dB |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 1.90" x 0.40" x 0.40" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -40 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
