General Parameters: |
Status: | Active |
Center Frequency: | 10000 MHz |
Insertion Loss: | 1 dB |
Bandwidth: | 1000 MHz |
VSWR: | 1.5:1 |
Rejection: | 6 Pole Response |
Connectors In/Out: | SMA (F/F) |

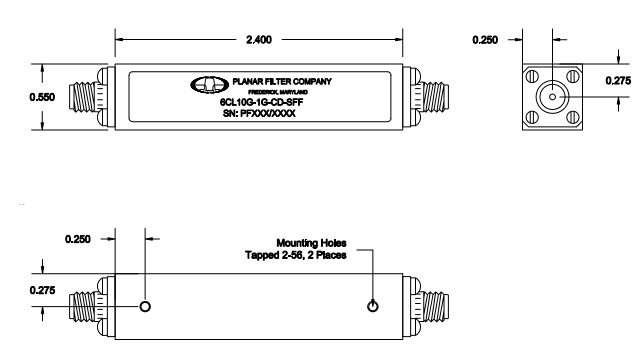

Size: | 2.4"L x 0.55"W x 0.5"H |
Environmental Ratings: |
Temperature: | -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
