6CL6D60-300-CD-SFF Active
Narrow Bandwidth Cavity Filter

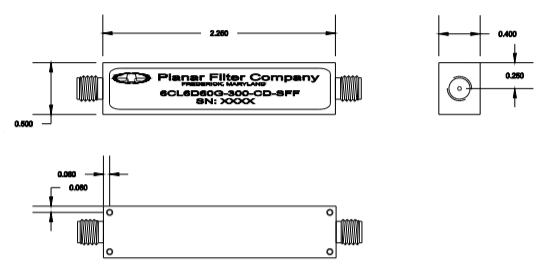

Quantic PMI Model CL6D60-300-CD-SFF is a Narrow Bandwidth Cavity Filter with a center frequency of 10.3 GHz and a bandwidth of 0.3 GHz @ 3 dB. Precision machined housing and silver plated to provide the highest possible Q. Package size is 2.25" x 0.40" x 0.50" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 10.3 |
| Bandwidth (GHz): | 0.3. @ 3 dB |
| Insertion Loss (dB): | 4 dB Max |
| Insertion Loss (Pass Band): | 4 dB Max |
| VSWR in the Pass Band: | 1.5:1 Max |
| Size: | 2.25" x 0.40" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
| Salt Fog: | MIL-STD-202F, METHOD 107D COND. A |
| Fungus: | MIL-STD-810C, METHOD 508.2 |
