7BP960-53D4-CD-SFF Active
Bandpass Filter

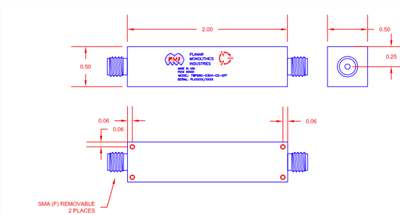

Quantic PMI Model 7BP960-53D4-CD-SFF is a bandpass filter centered at 0.96 GHz with a nominal bandwidth of 0.0534 GHz. Package size is 2.0" x 0.5" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.96 |
| Bandwidth (GHz): | 0.0534 |
| Insertion Loss (dB): | 6 dB Max |
| Insertion Loss (Pass Band): | 6 dB Max |
| Input Power (dBm): | 30 dB Max |
| Impedance: | 50 Ohm |
| VSWR in the Pass Band: | 1.5:1 Max |
| Stopband Attenuation: | 70 dB Min |
| Connectors: | SMA Female |
| Size: | 2.0" x 0.5" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
