7C1640-10-CD-SFF

Model 7C1640-10-CD-SFF is a a band pass filter centered at 1640MHz. The nominal bandwidth is 10MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency, Fo: 1640MHz
Bandwidth: 10MHz
Passband Insertion Loss: 4.7dB
Passband VSWR: 1.5:1
Rejection: -60dBc @ 1620 and 1660MHz

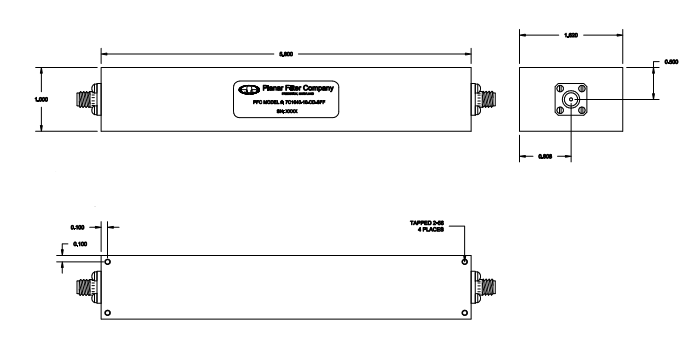

Size: 5.8"L x 1.0"W x 1.62"H
Connectors In/Out: SMA (F/F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -40ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
