7C6375D14-17D4M-CD-SFF

PMI Model Number 7C6375D14-17D4M-CD-SFF is a Cavity filter with SMA female connectors in and out. All filters will be machined and silver plated to provide the highest possible Q.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 6375.14 MHz
Insertion Loss: 4.5 dB max.
Bandwidth: 17.4 MHz @ 3dB
Connectors In/Out: SMA Female Connectors

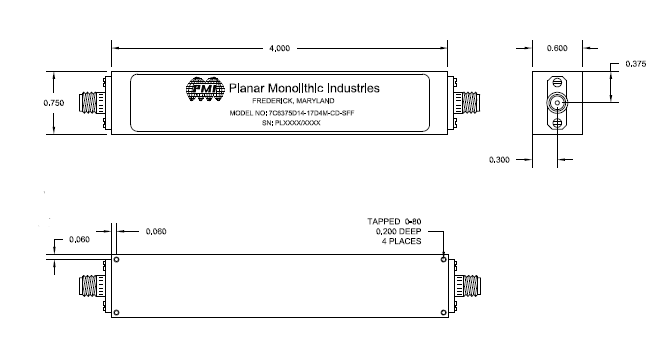

Size: 4.00" (L) x 0.60" (W) x 0.75" (H)
VSWR in the Pass Band: 1.5:1 Max
Insertion Loss (Pass Band): -4.5 dB Max.
Rejections: 7 Section Response
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810C, Method 508.2
Temperature (Operating): -55°C TO +85°C
Temperature (Storage): -65°C TO +125°C
