7CL1500-60-CD-SFF Active
Bandpass Filter
Additional Documents
- Product Feature
- Test Report - 9/1/14
- PL5312-5313 - Unit Data
- PL5314-5315 - Unit Data
- PL6701-6712 - Unit Data
- PL6716-6727 - Unit Data
- PL15719 - Unit Data
- PL15720 - Unit Data
- PL21796 - Unit Data
- PL21797 - Unit Data
- PL21798 - Unit Data
- PL21799 - Unit Data
- PL21800 - Unit Data
- PL21801 - Unit Data
- PL25066 - Unit Data
- PL25067 - Unit Data
- PL25068 - Unit Data
- PL25504 - Unit Data
- PL25505 - Unit Data
- PL25506 - Unit Data

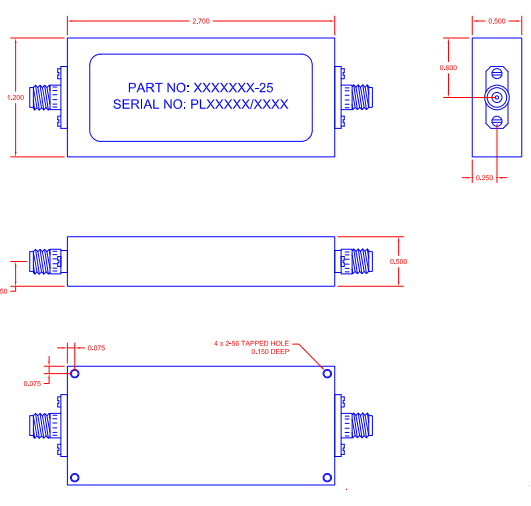

Quantic PMI Model 7CL1500-60-CD-SFF is a bandpass filter centered at 1.5 GHz with a nominal bandwidth of 0.06 GHz. Package size is 2.7" x 1.2" x 0.5" with SMA (F) connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.5 |
| Bandwidth (GHz): | 0.060 Min |
| 3 dB Bandwidth: | 0.06 |
| Insertion Loss (dB): | 7 dB Max |
| Loss Ripple (Peak to Peak): | 0.5 dB Max - Measured 0.1 dB |
| Rejection: | DC - 1.38 GHz @ -60 dB - Measured @ 64.47 dB, 1.62 to 3 GHz @ -60 dB - Measured @ 74.79 dB |
| VSWR: | 1.5:1 Max - Measured 1.17:1 |
| Connectors: | SMA Female |
| Size: | 2.7" x 1.2" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
| Fungus: | MIL-STD-810C, Method 508.2 |
