7CL4D1G-2G-CD-SFM Preliminary
Bandpass Filter

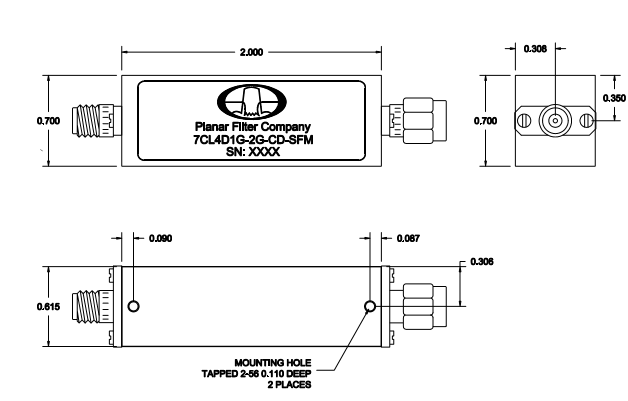

Quantic PMI Model 7CL4D1G-2G-CD-SFM is a bandpass filter centered at 4.1 GHz with a nominal bandwidth of 2 GHz. Package size is 2.0" x 0.7" x 0.615" with SMA female/male connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 4.1 |
| Bandwidth (GHz): | 2 |
| Insertion Loss (dB): | 4 dB |
| Rejection: | 5 Pole Response |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA Female / Male |
| Size: | 2.0" x 0.7" x 0.615" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
