Model 7CL6030-100-CD-SFF is a a band pass filter centered at 6030MHz. The nominal bandwidth is 100MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 6030 MHz
Insertion Loss: 2.15 dB
Bandwidth: 100 MHz
VSWR: 1.5:1
Rejection: -40dBc @ 6.3GHz, -70dBc @ 5.76GHz
Connectors In/Out: SMA (F/F)

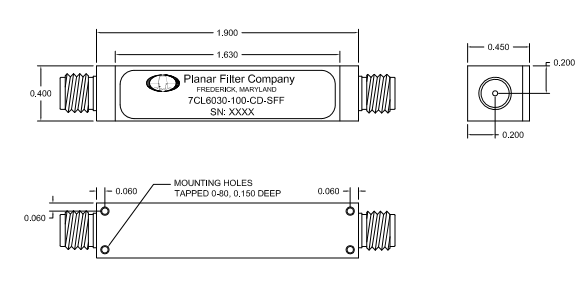

Size: 1.9"L x 0.4"W x 0.45"H
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
