7CL6850-700-CD-SFM Active
Bandpass Filter

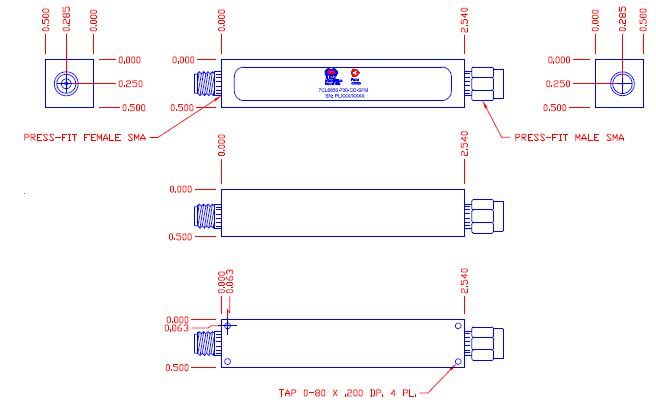

Quantic PMI Model 7CL6850-700-CD-SFM is a bandpass filter centered at 6.85 GHz with a nominal bandwidth of 0.7 GHz. Package size is 2.54" x 0.5" x 0.5" with SMA female/male connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 6.85 |
| Bandwidth (GHz): | 0.7 |
| Insertion Loss (dB): | 1 dB |
| Rejection: | -40 dBc @ 6.22 and 7.55 GHz, -65 dBc @ 5.73 and7.97 GHz |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female / Male |
| Size: | 2.54" x 0.5" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
