7HP-500-2000-3A-SMF Preliminary
Broadband High Pass Filter
Quantic PMI Model 7HP-500-2000-3A-SMF is a broadband High Pass Filter used to reject video transient with a passband frequency of 0.5 to 2 GHz. This unit has a cut-off frequency of 0.5 GHz insertion loss of ≤ -1 dB maximum inside the small 1.5" x 0.31" x 0.31" package with SMA (M/F) connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband Frequency (GHz): | 0.5 to 2 |
| Cut-Off Frequency (GHz): | 0.5 |
| Passband Insertion Loss (dB): | -1 dB Max |
| Passband VSWR: | 2.0:1 Max |
| Rejection: | -40 dB |
| Connectors: | SMA Male / Female |

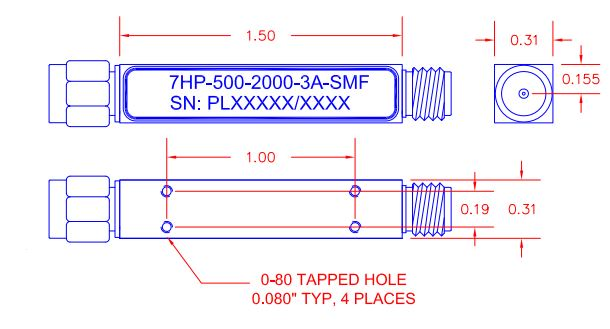

| Size: | 1.5" x 0.31" x 0.31" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
