7ID720-400-CD-SFF-GDO Active
Bandpass Cavity Filter

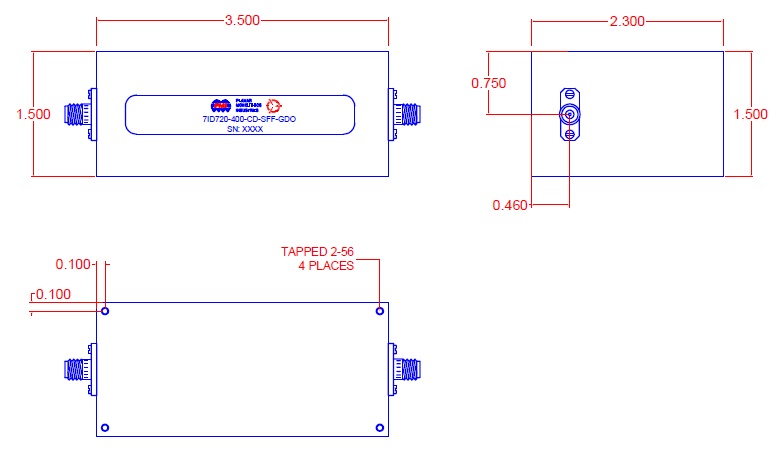

Quantic PMI Model 7ID720-400-CD-SFF-GDO is a Bandpass Cavity Filter with a center frequency of 0.72 GHz and a bandwidth of 0.4 GHz. Precision machined housing and silver plated to provide the highest possible Q. Package size is 6.87" x 1.60" x 2.00" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.72 |
| Bandwidth (GHz): | 0.4 |
| Insertion Loss (dB): | 1 dB |
| Insertion Loss (Pass Band): | 1 dB Max |
| Group Delay: | 4.4 ns Typ |
| VSWR in the Pass Band: | 1.5:1 Max (0.58 to 0.87 GHz) |
| Connectors: | SMA Male / Female |
| Size: | 6.87" x 1.60" x 2.00" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
