7LP400-410-3B-SFF
Preliminary
Lowpass Filter
Quantic PMI Model 7LP400-410-3B-SFF is a lowpass filter having a passband of DC to 0.4 GHz with an insertion loss of 1.5 dB maximum. Package size is 1.5" x 0.5" x 0.5" with SMA female connectors in and out.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Passband (GHz): | DC to 0.4 |
|---|
| Cut-Off Frequency (GHz): | 0.41 |
|---|
| Passband Insertion Loss: | 1.5 dB |
|---|
| Passband VSWR: | 1.5:1 Max |
|---|
| Rejection: | 6 Pole Response |
|---|
| Connectors In/Out: | SMA Female |
|---|

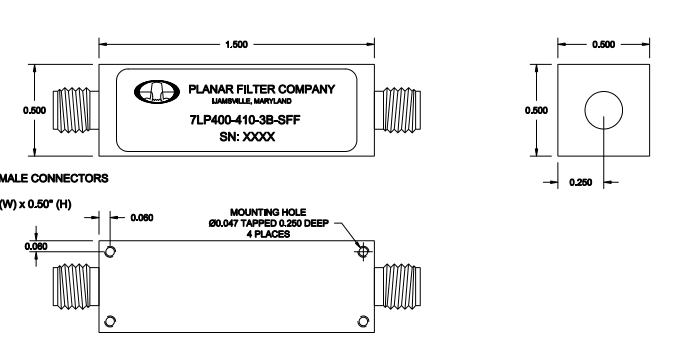

| Size: | 1.5" x 0.5" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 °C to 85 °C |
|---|
| Non-Operating: | -40 °C to 100 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
