8BP160-60-3B-SFF Preliminary
Bandpass Filter

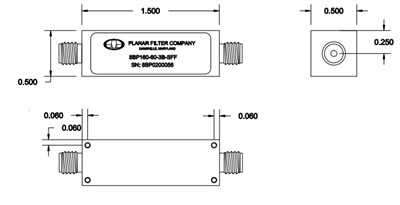

Quantic PMI Model 8BP160-60-3B-SFF is a bandpass filter centered at 0.16 GHz with a nominal bandwidth is 0.06 GHz. Package size is 1.20" x 0.31" x 0.31" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 0.16 |
| Bandwidth (GHz): | 0.06 |
| Insertion Loss (dB): | 2 dB |
| Insertion Loss (Pass Band): | 2 dB |
| Rejection: | -25 dBc @ 0.21 GHz -60 dBc @ 0.105 GHz |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 1.20" x 0.31" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40°C to +85°C |
| Non-Operating Temperature: | -40°C to +100°C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
