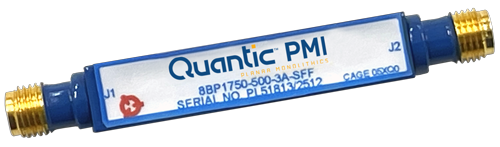

8BP1750-500-3A-SFF Active
Bandpass Filter
Quantic PMI Model 8BP1750-500-3A-SFF is a bandpass filter centered at 1.75 GHz with a nominal bandwidth of 0.5 GHz. Package size is 1.50" x 0.31" x 0.31" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.75 |
| Bandwidth (GHz): | 1.5 to 2 |
| Insertion Loss (dB): | 1.5 dB Max @ 1.75 GHz |
| Input Power (dBm): | 1 W Max |
| Rejection: | 60 dBc Min @ 0.95 and 2.3 GHz |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | SMA Female |
| Size: | 1.50" x 0.31" x 0.31" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
