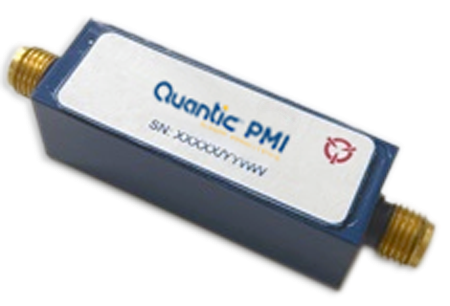

8BP350-100-3B-SFF Active
LC Bandpass Filter
Quantic PMI Model 8BP350-100-3B-SFF is a LC Bandpass filter with a center frequency of 0.35 GHz; bandwidth of 0.1 GHz at 3 dB and VSWR of 1.5:1. Package size is 2.0" x 0.31" x 0.31" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.35 |
| Bandwidth (GHz): | 0.1 @ 3 dB |
| Insertion Loss (dB): | 1 dB Max |
| Insertion Loss (Pass Band): | -2 dB Max |
| Rejection: | 8 Section Response |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
