8BP370-160-3B-SFM Active
Bandpass Filter
Quantic PMI Model 8BP370-160-3B-SFM is a bandpass filter with a center frequency of 0.37 GHz; bandwidth of 0.16 GHz and a VSWR of 1.5:1. Small package size is 1.5" x 0.5" x 0.4" with SMA female/male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.37 |
| Bandwidth (GHz): | 0.16 |
| Rejection: | 6 Pole Response |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | SMA Female / Male |

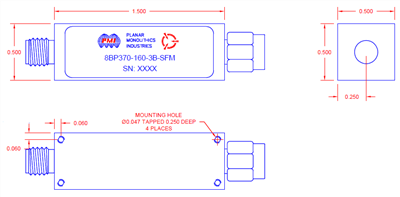

| Size: | 1.5" x 0.5" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
