8BP885-200-3B-SFF Preliminary
Bandpass Filter
Quantic PMI Model 8BP885-200-3B-SFF is a bandpass filter centered at 0.885 GHz with a nominal bandwidth of 0.2 GHz. Package size is 1.5" x 0.5" x 0.5" and contains SMA (F) connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 0.885 |
| Bandwidth (GHz): | 0.2 |
| Insertion Loss (dB): | 2 dB Max |
| Insertion Loss (Pass Band): | 2 dB Max |
| Power Handling (dBm): | 1 W Max |
| Passband Ripple: | ±0.5 dB Max |
| Impedance: | 50 Ohm |
| Rejection: | 8 dBc Min @ 0.755 and 1.015 GHz 30 dBc Min @ 0.730 and 1.04 GHz |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | SMA Female |

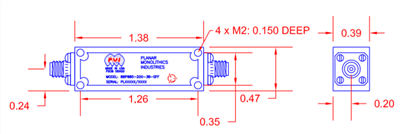

| Size: | 1.5" x 0.5" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. A |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
