Model 8C10D8G-300-CD-SFF is a a band pass filter centered at 10800MHz. The nominal bandwidth is 300MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency, Fo: 10800MHz
Bandwidth: 300MHz
Passband Insertion Loss: 3.0dB
Passband VSWR: 1.5:1
Rejection: -80dBc @ 10.2 and 11.4GHz

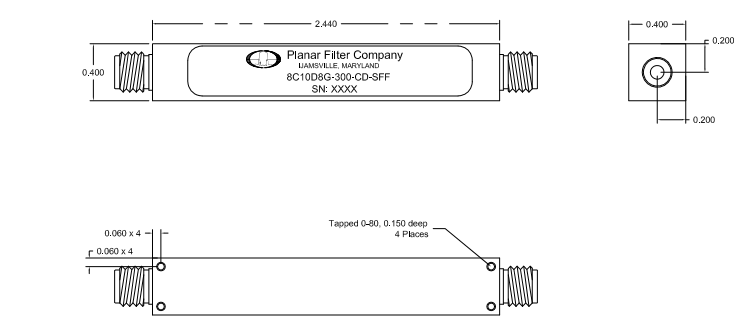

Size: 2.44"L x 0.4"W x 0.4"H
Connectors In/Out: SMA (F/F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -40ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
