8C12D6G-300-CD-SFF

Model 8C12D6G-300-CD-SFF is a a band pass filter centered at 12600MHz. The nominal bandwidth is 300MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 12600MHz
Insertion Loss: 3 dB max.
Bandwidth: 300MHz
Connectors In/Out: SMA (F/F)

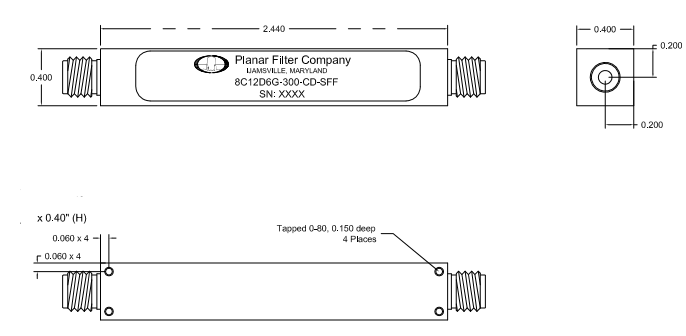

Size: 2.44"L x 0.4"W x 0.4"H
VSWR in the Pass Band: 1.5:1
Insertion Loss (Pass Band): 3.0dB
Rejections: -80dBc @ 12.0 and 13.2GHz
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Temperature (Operating): -40ºC to +85 ºC
Temperature (Storage): -40ºC to +100 ºC
