8C1542D5-35-CD-SFF Active
Bandpass Filter

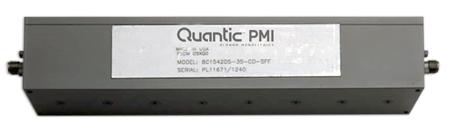

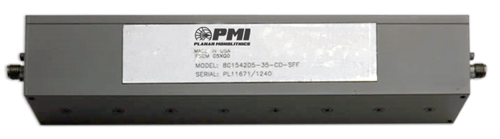

Quantic PMI Model 8C1542D5-35-CD-SFF is a bandpass filter centered at 1.5425 GHz with a nominal bandwidth of 0.035 GHz. This model offers a low insertion loss of 1 dB maximum and maintains a passband VSWR of 1.5:1 maximum. Package size is 6.6" x 1.2" x 1.3" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.5425 |
| Bandwidth (GHz): | 0.035 - Measured 0.0359 |
| Insertion Loss (dB): | 1.5 dB Max |
| Insertion Loss (Pass Band): | 1.5 dB - Measured 1.17 dB |
| VSWR in the Pass Band: | 1.5:1 - Measured 1.4:1 |
| Connectors: | SMA Female |
| Size: | 6.6" x 1.2" x 1.3" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -40 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
