8C1747D5-75-CD-SFF Active

Bandpass Filter

Product Feature
Additional Documents

Quantic PMI Model 8C1747D5-75-CD-SFF is a bandpass filter centered at 1.7475 GHz with a nominal bandwidth of 0.075 GHz. Package size is 6.6" x 1.2" x 1.3" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 1.7475 GHz
Insertion Loss: 1.5 dB Max
Bandwidth: 0.075 GHz
Connectors In/Out: SMA (F)

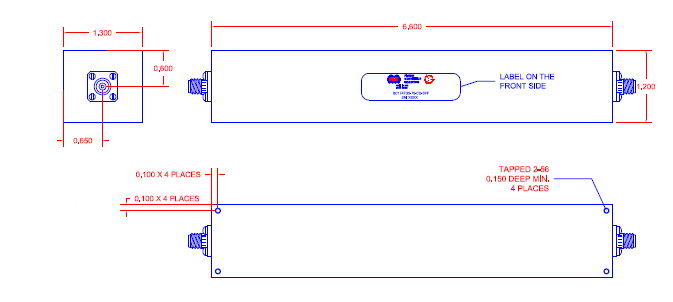

Size: 6.6" x 1.2" x 1.3"
VSWR in the Pass Band: 1.5:1
Insertion Loss (Pass Band): 1.5 dB
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +100 ºC
