8C1880-30-CD-SFF

Model 8C1880-30-CD-SFF is a a band pass filter centered at 1880MHz. The nominal bandwidth is 30MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency, Fo: 1880MHz
Bandwidth: 30MHz
Passband Insertion Loss: 1.5dB
Passband VSWR: 1.5:1
Rejection: 8 Pole Response

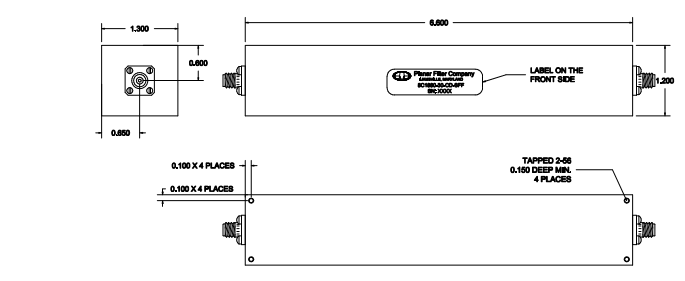

Size: 6.6"L x 1.2"W x 1.3"H
Connectors In/Out: SMA (F/F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -40ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
