8C836D5-25-CD-SFF Active
Bandpass Filter

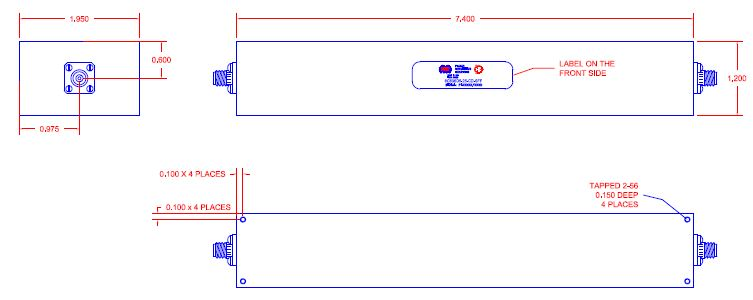

Quantic PMI Model 8C836D5-25-CD-SFF is a bandpass filter centered at 0.8365 GHz with a nominal bandwidth of 0.025 GHz. Package size is 7.4" x 1.2" x 1.95" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.8365 |
| Bandwidth (GHz): | 0.025 |
| Insertion Loss (dB): | 1.2 dB Max |
| Insertion Loss (Pass Band): | 1.2 dB |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 7.4" x 1.2" x 1.95" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
