8C937D8375-10-CD-SFF

Model 8C937D8375-10-CD-SFF is a a band pass filter centered at 937.8375MHz. The nominal bandwidth is 10MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 937.8375MHz
Bandwidth: 10MHz
Connectors In/Out: SMA (F/F)

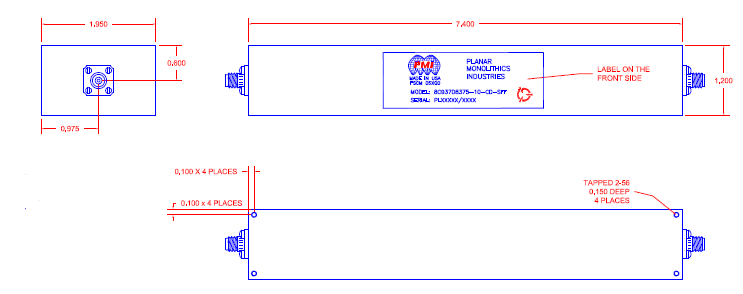

Size: 7.4"L x 1.2"W x 1.95"H
VSWR in the Pass Band: 1.5:1
Insertion Loss (Pass Band): 1.0dB
Rejections: 8 Pole Response
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Temperature (Operating): -55ºC to +85 ºC
Temperature (Storage): -65ºC to +125 ºC
