8C947D5-25-CD-SFF

Model 8C947D5-25-CD-SFF is a a band pass filter centered at 947.5MHz. The nominal bandwidth is 25MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo: 947.5MHz
Bandwidth: 25MHz
Passband Insertion Loss: 1.0dB
Passband VSWR: 1.5:1
Rejection: 8 Pole Response

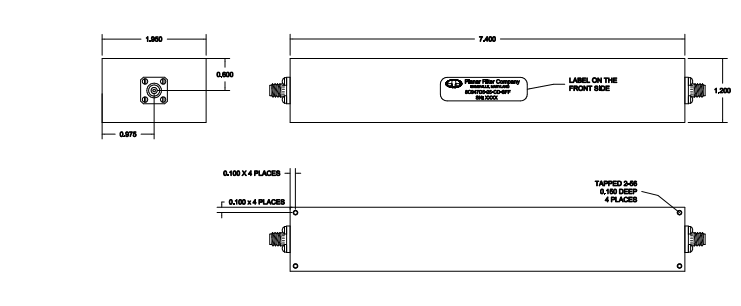

Size: 7.4"L x 1.2"W x 1.95"H
Connectors In/Out: SMA (F/F)
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -40ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
