8CL10G-200-CD-SFF Active
Combline Filter

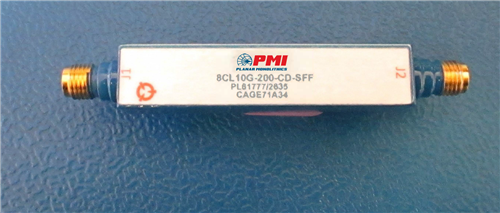

Quantic PMI Model 8CL10G-200-CD-SFF is a combline filter with a center frequency of 10 GHz and a bandwidth of 0.2 GHz. Package size is 1.9" x 0.4" x 0.4" with SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 10 |
| Bandwidth (GHz): | 0.2 |
| 3 dB Bandwidth: | 0.2 |
| Insertion Loss (dB): | 2 dB Max |
| Insertion Loss (Pass Band): | 2 dB Max |
| Rejection @ 9.6 GHz: | 60 dB |
| Rejection @ 10.4 GHz: | 60 dB |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | SMA Female |

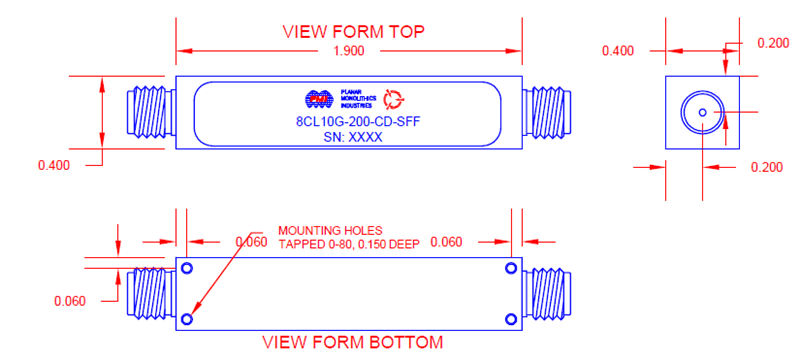

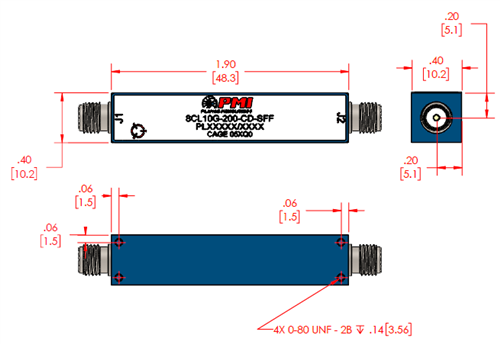

| Size: | 1.9" x 0.4" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C (Operating) -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
