8CL11400-3200-CD-SFF

Model 8CL11400-3200-CD-SFF is a a band pass filter centered at 11400MHz. The nominal bandwidth is 3200MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 11400 MHz
Insertion Loss: 1 dB
Bandwidth: 3200 MHz
VSWR: 1.5:1
Rejection: -45dBc @ 14.0GHz, -65dBc @ 4.2GHz
Connectors In/Out: SMA (F/F)

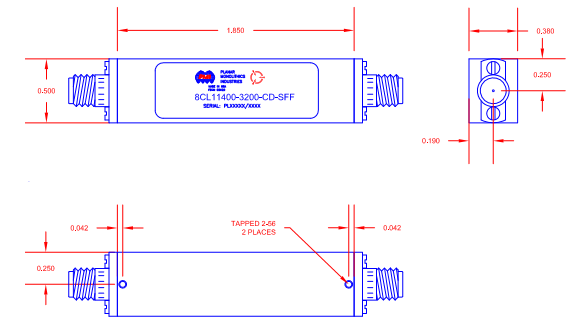

Size: 2.0"L x 0.625"W x 0.4"H
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810C, Method 508.2
