8CL1250-300-CD-SFF Active
Combline Filter

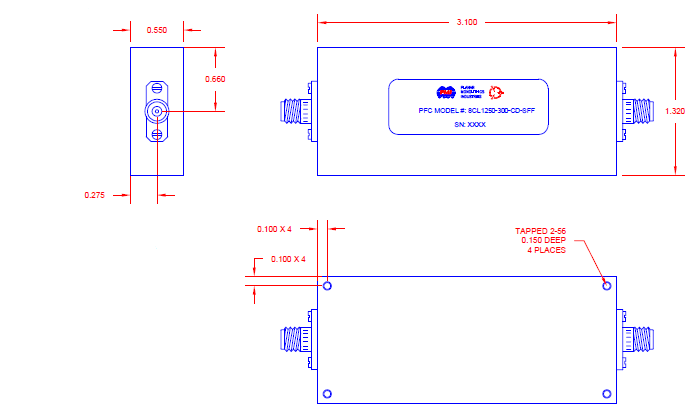

Quantic PMI model 8CL1250-300-CD-SFF is a Combline Filter with a center frequency of 1.25 GHz and a 1 dB passband of 1.1 & 1.4 GHz. Precision machined housing and silver plated to provide the highest possible Q. Package size is 3.10" x 1.32" x 0.55" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.25 |
| Bandwidth (GHz): | 1.1 & 1.4 @ 1 dB |
| 1 dB Passband: | 1.1 & 1.4 GHz |
| Insertion Loss (dB): | 2.5 dB Max (Passband) |
| Rejection @ 1 GHz: | -20 dB |
| Rejection @ 1.6 GHz: | -60 dB |
| VSWR: | 1.5:1 Max |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | SMA Female |
| Size: | 3.10" x 1.32" x 0.55" |
| Weight: | 1 oz Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STDB-202F, METHOD 105B COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
| Salt Fog: | MIL-STD-202F, METHOD 107B COND. A |
| Fungus: | MIL-STD-810C, METHOD 508.2 |
