8CL14D25G-5D5G-CD-SS
Active
Combline Filter

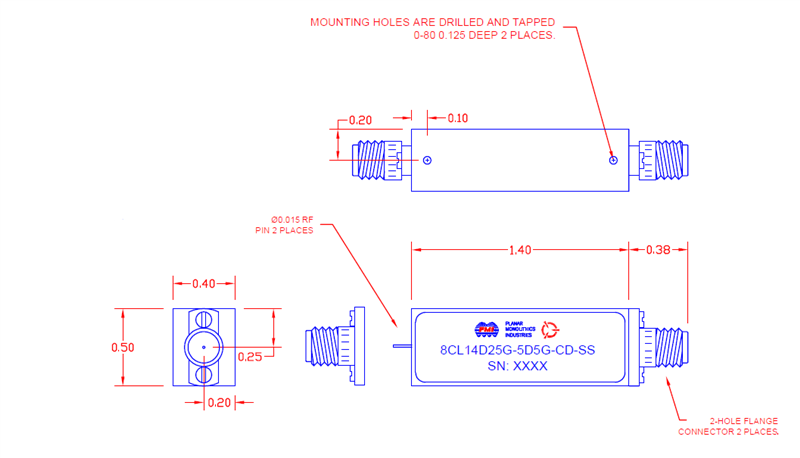

Quantic PMI Model 8CL14D25G-5D5G-CD-SS is a combline filter with a center frequency of 14.25 GHz and a bandwidth of 5.5 GHz. Package size is 1.4" x 0.4" x 0.5" with SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 14.25 GHz |
|---|
| Insertion Loss: | 1 dB |
|---|
| Bandwidth: | 5.5 GHz |
|---|
| Input Power: | 5 W |
|---|
| VSWR: | 1.2:1 |
|---|
| Passband Ripple: | -1 dB |
|---|
| Impedance: | 50 Ohm |
|---|
| Size: | 1.4" x 0.4" x 0.5" |
|---|
| Rejection from 2 to 4 GHz: | -40 dB Max |
|---|
| Rejection @ 19 GHz: | -40 dB |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
