8CL18G-1D4G-CD-SFF

PMI Model No. 8CL18G-1D4G-CD-SFF is a combline filter.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 18000 MHz
Insertion Loss: 3 dB max.
Bandwidth: 1400 MHz
VSWR: 1.5:1 max.
Connectors In/Out: SMA (F)

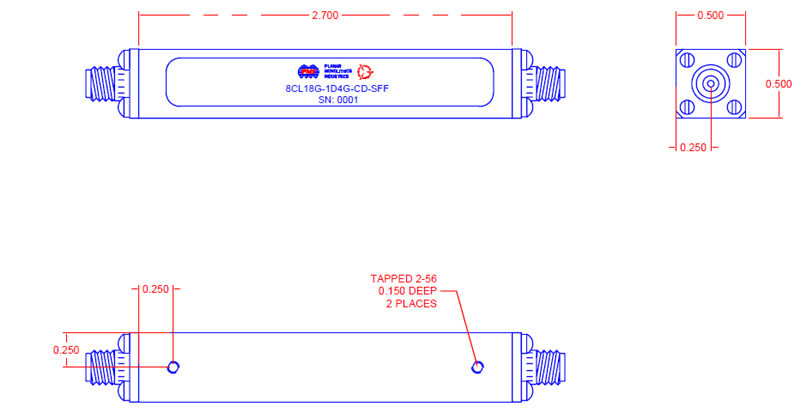

Size: 2.7" x 0.5" x 0.5"
Rejection from 20000 to 34000 MHz: 80 dB
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810C, Method 508.2
Temperature (Operating): -55°C to +85°C
Temperature (Storage): -65°C to +125°C
