8CL1980-40-CD-SFF Active
Bandpass Filter
Additional Documents
- Product Feature
- Test Report - 9/1/14
- PL5318-5319 - Unit Data
- PL5320-5321 - Unit Data
- PL6439-6450 - Unit Data
- PL15722 - Unit Data
- PL15723 - Unit Data
- PL21787 - Unit Data
- PL21788 - Unit Data
- PL21789 - Unit Data
- PL21790 - Unit Data
- PL21791 - Unit Data
- PL21792 - Unit Data
- PL24782 - Unit Data
- PL24783 - Unit Data
- PL24784 - Unit Data
- PL25144 - Unit Data
- PL25145 - Unit Data
- PL25146 - Unit Data
- PL25510 - Unit Data
- PL25512 - Unit Data

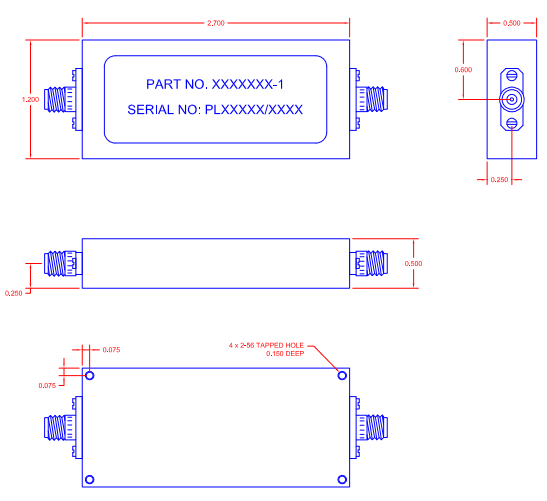

Quantic PMI Model 8CL1980-40-CD-SFF Model 8CL1980-40-CD-SFF is a bandpass filter centered at 19.8 GHz with a nominal bandwidth of 0.04 GHz. Package size is 2.7" x 1.2" x 0.5" with removable SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.98 |
| Bandwidth (GHz): | 0.04 |
| 3 dB Bandwidth: | 0.04 |
| Insertion Loss (dB): | 7 dB Max |
| Loss Ripple (Peak to Peak): | 0.5 dB max - Measured 0.1 dB |
| Rejection: | DC - 1.92 GHz - Measured 64.23 dB, 2.04 - 4 GHz - Measured 63.10 dB |
| VSWR: | 1.5:1 Max - Measured 1.42:1 |
| Connectors: | SMA Female |
| Weight: | 1 oz |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
| Fungus: | MIL-SDT-810C, Method 508.2 |
