8CL4D9G-270-CD-SFF

Model 8CL4D9G-270-CD-SFF is a a band pass filter centered at 4900MHz. The nominal bandwidth is 270MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 4900 MHz
Insertion Loss: 3 dB
Bandwidth: 270 MHz
VSWR: 1.5:1 max.
Rejection: -50dBc @ 4550 and 5225MHz
Connectors In/Out: SMA (F/F)

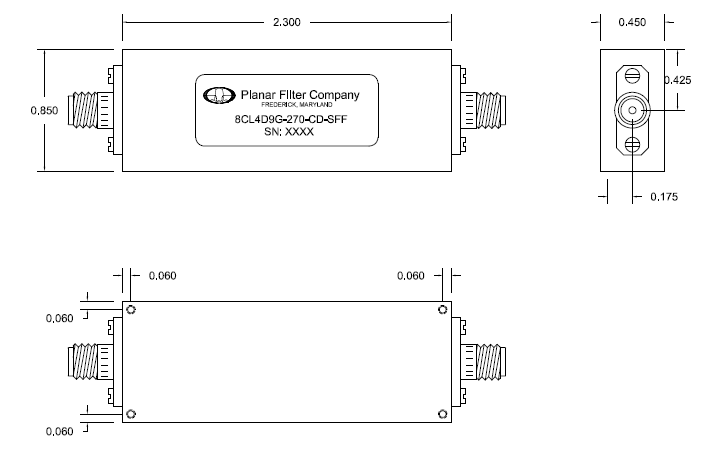

Size: 2.3"L x 0.85"W x 0.45"H
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
