8CL5D7G-200-CD-SFF

PMI Model No. 8CL5D7G-200-DC-SFF is a  Combline Bandpass filter with SMA female connectors in and out.  All filters will be machined and silver plated  to provide the highest possible Q.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 5700 MHz
Insertion Loss: is less than or equal to 7 dB MAX.
Bandwidth: 200 MHz @ 1db BANDWIDTH
Weight: 1 OZ. TYP.
VSWR: 1.5:1 max.
Connectors: SMA FEMALE CONNECTORS

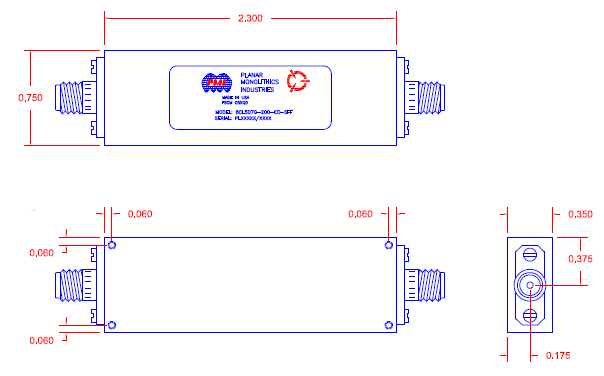

Size: 2.3"L x 0.75"W x 0.35"H
REJECTION @ 5100 MHz: -40 dB
REJECTION @ 5500 MHz: -40 dB
REJECTION FROM 12000 TO 29000 MHz.: -60 dB
REJECTION @ 5100 MHz: -40 dB
REJECTION @ 5500 MHz: -40 dB
REJECTION FROM 12000 TO 29000 MHz.: -60 dB
REJECTION FROM 12000 TO 29000 MHz.: -60 dB
REJECTION FROM 12000 TO 29000 MHz.: -60 dB
REJECTION FROM 12000 TO 29000 MHz.: -60 dB
REJECTION @ 5100 MHz: -40 dB
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-202F, Method 508.2
Temperature (Operating): -55º C to +85 ºC (OPERATING)
Temperature (Storage): -65º C to +125º C (STORAGE)
