8CL6D5G-200-CD-SFF Preliminary
Bandpass Filter

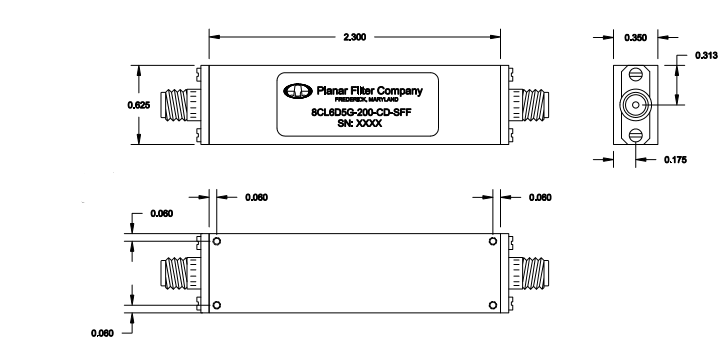

Quantic PMI Model 8CL-6D5G-200-CD-SFF is a bandpass filter centered at 6.5 GHz with a nominal bandwidth is 0.2 GHz. Package size is 2.3" x 0.625" x 0.35" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 6.5 |
| Bandwidth (GHz): | 0.2 |
| Insertion Loss (dB): | 2 dB |
| Rejection: | -40 dBc @ 6.3 and 6.7 GHz, -60 dBc @ 6.8 and 15.5 GHz |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 2.3" x 0.625" x 0.35" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
