8CL7D3G-200-CD-SFF

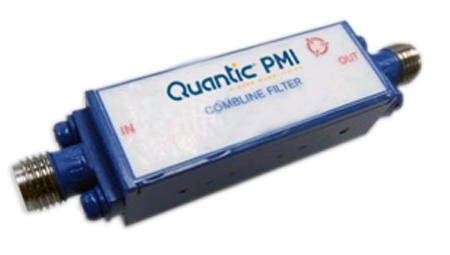

PMI Model Number 8CL7D3G-200-CD-SFF is a Combline Bandpass filter with SMA female connectors in and out. All filters will be machined and silver plated to provide the highest possible Q.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 7300 MHz
Insertion Loss: < 2 dB Max.
Bandwidth: 200 MHz at 3 dB
Weight: 1 Oz.
Connectors: SMA Female
Size: 2.30" 0.625" 0.35"
Environmental Ratings:
Temperature: -55°C to 85°C (Operating), -65°C to 125°C (Storage)
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810C, Method 508.2
