| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 7900 MHz |
|---|
| Insertion Loss: | 2 dB max. |
|---|
| Bandwidth: | 200 MHz |
|---|
| 3 dB Bandwidth: | 200 MHz |
|---|
| VSWR: | 1.5:1 max. |
|---|
| Connectors In/Out: | SMA (F) |
|---|

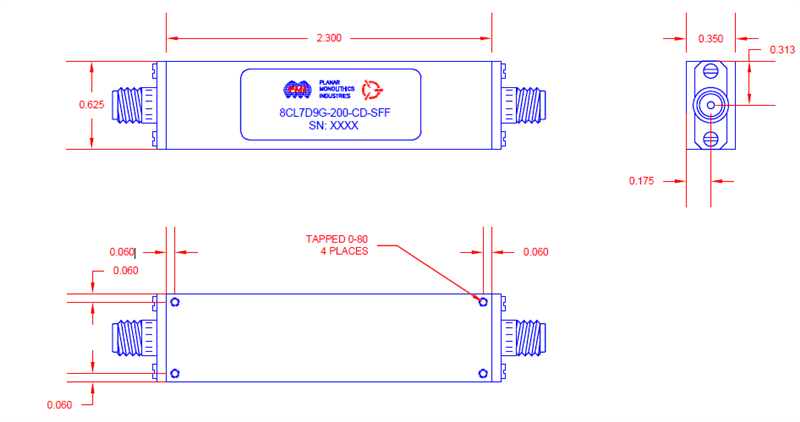

| Size: | 2.300" x 0.625" x 0.350" |
|---|
| Rejection @ 7700 MHz: | -40 dB |
|---|
| Rejection @ 8100 MHz: | -40 dB |
|---|
| Rejection from 8200 to 18000 MHz: | -60 dB |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Temperature (Operating): | -55°C to +85°C |
|---|
| Temperature (Storage): | -65°C to +125°C |
|---|
