8CL8R85-950-CD-SFM
Preliminary
Combline Filter

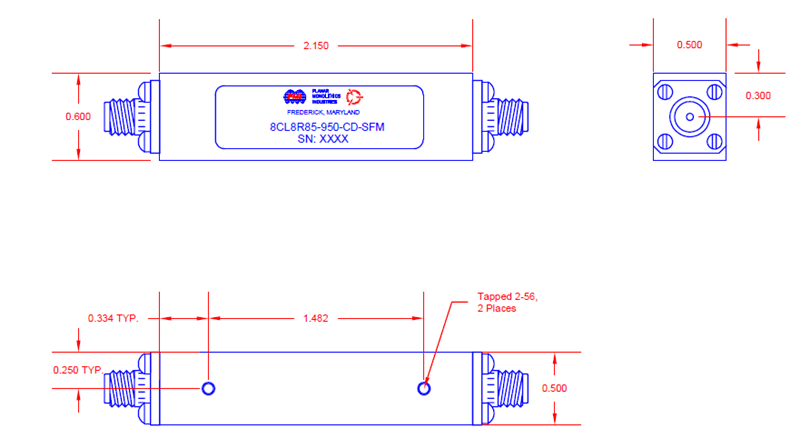

Quantic PMI Model 8CL8R85-950-CD-SFM is a combline filter with a center frequency of 8.85 GHz and a bandwidth of 0.95 GHz. Package size is 2.15" x 0.60" x 0.50" with SMA connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency: | 8.85 GHz |
|---|
| Insertion Loss: | 1 dB Max |
|---|
| Bandwidth: | 0.95 GHz |
|---|
| Insertion Loss Variation Over Operating Temperature: | 1.0 dB max. |
|---|
| Passband Flatness: | 1.0 dB P-P Max |
|---|
| VSWR: | 1.5:1 max. |
|---|
| Rejection: | 8 Pole Response |
|---|
| Connectors In/Out: | SMA (F) |
|---|
| Size: | 2.15" x 0.60" x 0.50" |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 107 |
|---|
| Temperature (Operating): | -20 °C to +70 °C |
|---|
| Temperature (Storage): | -40 °C to +85 °C |
|---|
