General Parameters: |
Status: | Active |
Passband: | DC to 3000 MHz |
Cut-Off Frequency: | 3100 MHz |
Passband Insertion Loss: | -1.5 dB |
Input Power: | 20 W CW min., 50 W CW goal |
Rejection @ 140 MHz: | 5 Pole Response , 40 dB @ 4000 MHz, 30 dB @ 8000 MHz |
Passband VSWR: | 1.5:1 |
Connectors In/Out: | SMA(F/F) |

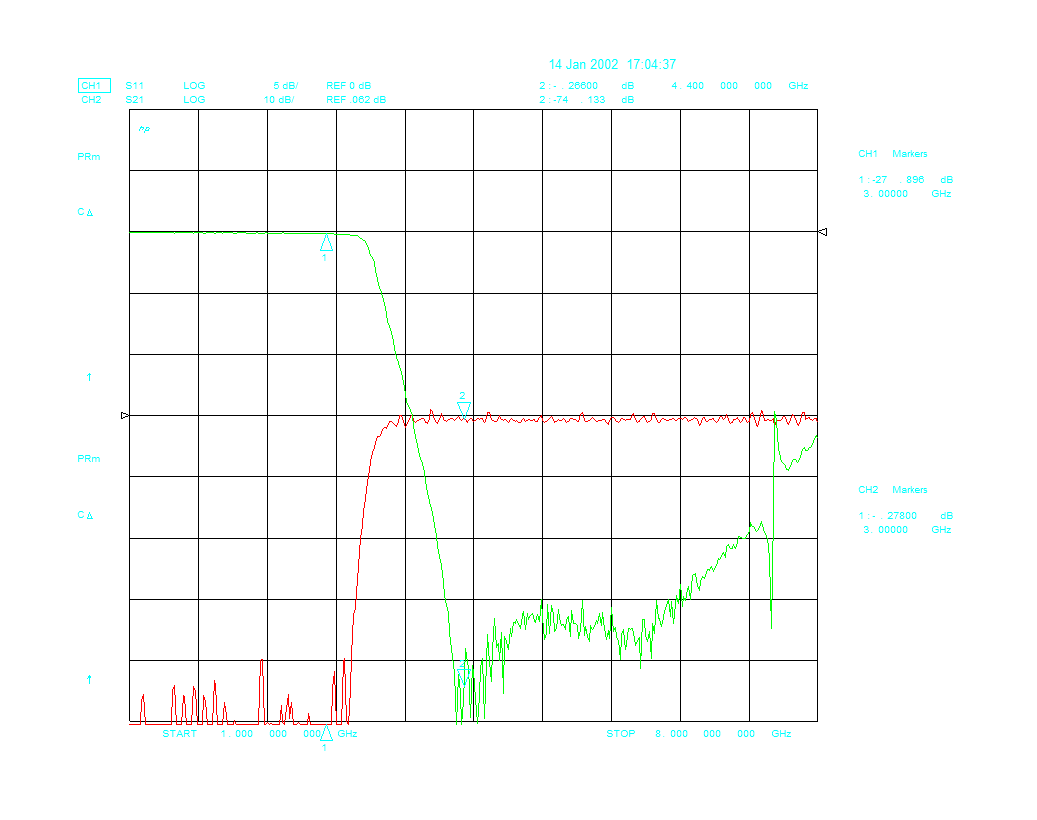

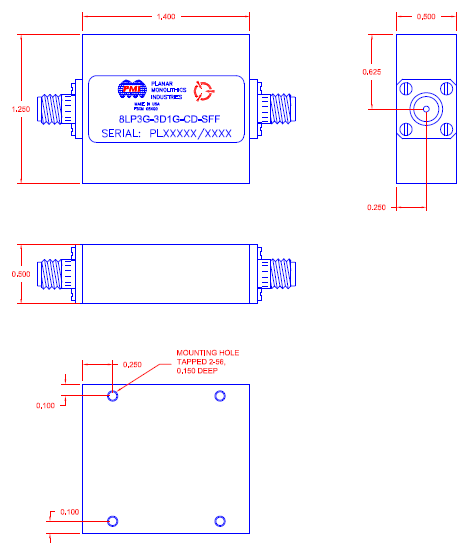

Size: | 1.4 x 1.25 x 0.50 |
Environmental Ratings: |
Temperature: | -55 to 85 Degree C |
Non-Operating: | -65 to 125 Degree C |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-810C, Method 508.2 |
Temperature Cycle: | MIL-STD-202F, Method 107 |
