9612HPC333 Preliminary

Circulator

9612HPC333

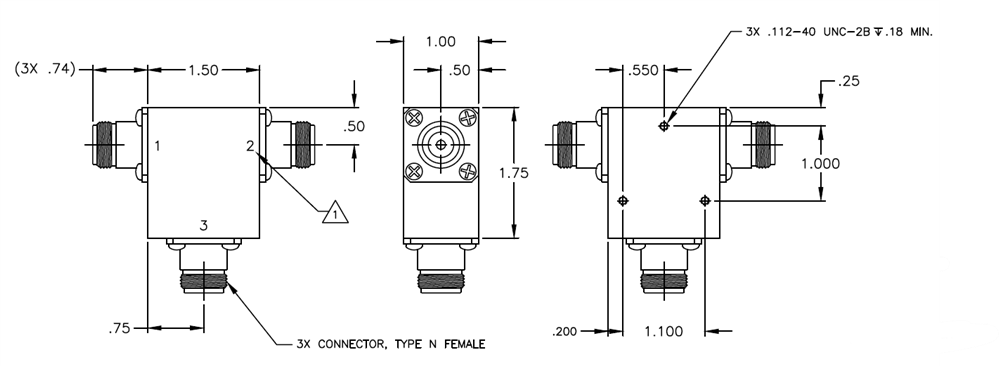

Quantic Model 9612HPC333 is a circulator designed to operate in the 0.96 to 1.22 GHz frequency range that can handle 300 W CW power, and 4 kW peak power. Housing size is 1.5" x 1.75" x 1.0" and comes equipped with Type N female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.96 to 1.22
Frequency Min (GHz): 0.96
Frequency Max (GHz): 1.22
Insertion Loss (dB): 0.3 dB Max
Isolation (GHz): 20 dB Min
VSWR: 1.25:1 Max
Forward Power: 300 W CW,
4 kW Peak
Connectors: Type N Female
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -20 °C to +60 °C
