9BP1000-520-CD-PP Preliminary
Bandpass Filter
Quantic PMI Model 9BP1000-520-CD-PP is a bandpass filter centered at 1 GHz with a nominal bandwidth of 0.52 GHz. Package size is 1.50" x 0.44" x 0.31" with PC pins.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 1 |
| Bandwidth (GHz): | 0.52 |
| Insertion Loss (dB): | 2 dB |
| Insertion Loss (Pass Band): | 2 dB |
| Rejection: | 9 Pole Response |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | PC Pins |

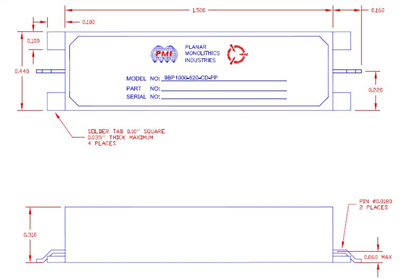

| Size: | 1.50" x 0.44" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -40 °C to +100 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
