9BP5650-730-CD-PP Active
Bandpass Filter
Additional Documents

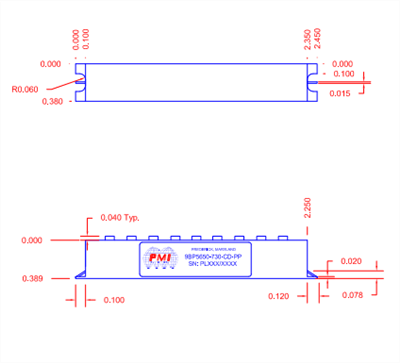

Quantic PMI Model 9BP5650-730-CD-PP is a bandpass filter centered at 5.65 GHz with a nominal bandwidth of 0.73 GHz. Package size is 1.10" x 0.30" x 0.66" with PC pins.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 5.65 |
| Bandwidth (GHz): | 0.73 |
| Insertion Loss (dB): | 4.75 dB |
| Insertion Loss (Pass Band): | 4.75 dB |
| Rejection: | -60 dBc @ 0.4 and 6.79 GHz |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | PC Pins |
| Size: | 1.10" x 0.30" x 0.66" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -40 °C to +100 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
