ADA-0520F-65-OPT6G18G-PTB Active
Portable Adjustable Threshold Detector
Additional Documents

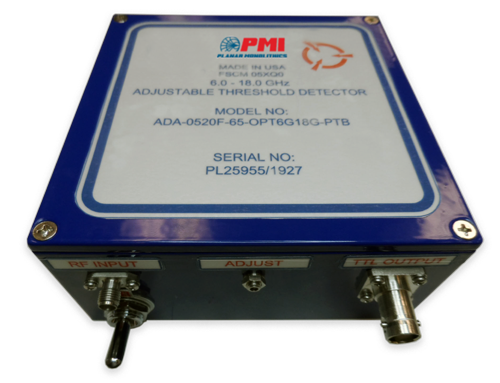

PMI Model ADA-0520F-65-OPT6G18G-PTB is a 6 to 18 GHz, Portable Adjustable Threshold Detector that features an on/off switch that is located on the front panel and operations on 220 to 230 VAC. Housing size is 4.92" x 4.92" x 2.26" with SMA female (RF Input) and BNC female (Output) connectors. Supplied with a 6 foot EU 2-prong style power cord.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Threshold: | Adjustable |
| Detected Output Type: | TTL |
| Rise/Fall Time: | 60 ns Max |
| RF Input Connector: | SMA Female |
| Output Connector: | BNC Female |
| Threshold Variation: | ±1.5 dB Max |
| Detected Output: | 0 V & 2.5 V Min under 50 Ohms (TTL) |
| Propagation Delay: | 10 ns Typ, 20 ns Max |
| Input Operating Range: | 10 dBm |
| Recovery Time: | 10 ns Typ, 20 ns Max |
| Size: | 4.92" x 4.92" x 2.26" |
| Finish: | Blue Powder Coated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -50 ºC to +85 ºC |
| Non-Operating Temperature: | -50 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
