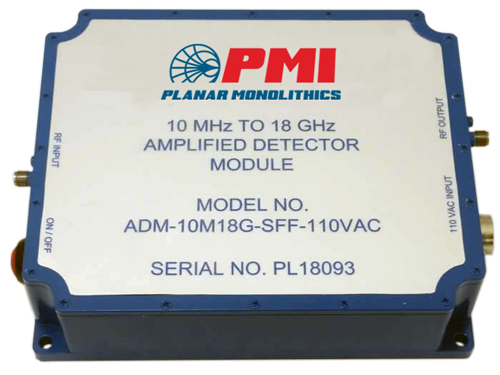

ADM-10M18G-SFF-110VAC Active
Amplified Detector Module
PMI Model ADM-1018G-SFF-110VAC is a state-of-the-art 0.01 to 18 GHz integrated subsystem that allows users to input RF signals and provide automatic detection when signal levels fall below -30 dBm and automatically switch in a low noise amplifier such that low level signals can remain detectable. The purpose of this module is to provide optimum RF signal levels to a RF/fiber converter module. The unit is powered by standard 100 VAC. The RF input is via a SMA female connector and the output is via a SMA female connector. The product is configured such that the end user can change the value of the fixed attenuator level by changing the internal SMA screw-on attenuator such that in system optimization can be done.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model ADM-1018G-SFF-110VAC is a state-of-the-art 0.01 to 18 GHz integrated subsystem that allows users to input RF signals and provide automatic detection when signal levels fall below -30 dBm and automatically switch in a low noise amplifier such that low level signals can remain detectable. The purpose of this module is to provide optimum RF signal levels to a RF/fiber converter module. The unit is powered by standard 100 VAC. The RF input is via a SMA female connector and the output is via a SMA female connector. The product is configured such that the end user can change the value of the fixed attenuator level by changing the internal SMA screw-on attenuator such that in system optimization can be done. |
| Item No.: | 31 |
| Export Classification (ECCN): | EAR99 |
