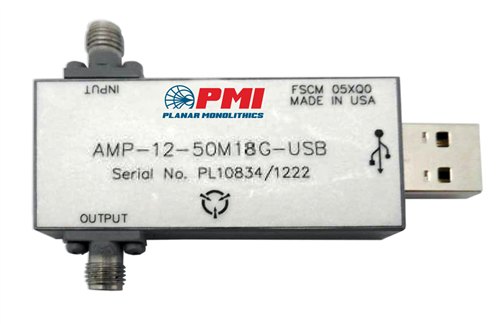

AMP-12-50M18G-USB *

USB Attenuator

Buy Now

PMI Model No. AMP-12-50M18G-USB is a state-of-the-art amplifier that operates from 50 MHz to 18 GHz.  This amplifier is powered via USB 2.0.  This model offers 12 dB of gain with an output power at 1 dB gain compression of +10 dBm.  The package size is 2.25" x 1.0" x 0.33".

Product Specifications

General Parameters:
Status: Active
Frequency: 0.05 to 18.0GHz
Gain: 12 dB Typ - Measured 13.22 dB Typ
Gain Flatness: ±2.5 dB Typ - Measured ±0.41 dB
VSWR In/Out: 2.3:1 Typ - Measured 1.55:1/1.88:1
OP1dB: +10 dBm Typ - Measured 10 dBm Typ
Noise Figure: 4.5 dB Typ - Measured 4.75 dB Typ
DC Supply: USB 2.0
Connectors In/Out: SMA (F)
Size: 2.25" x 1.0" x 0.33"
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating
Non-Operating: -55 ºC to +125 ºC Non-Operating
