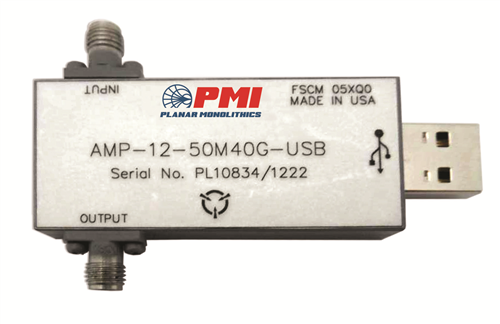

AMP-12-50M40G-USB * Active
USB Amplifier
Buy Now
PMI Model AMP-12-50M40G-USB is a state-of-the-art amplifier that operates from 0.05 to 40 GHz. This amplifier is powered via USB 2.0. This model offers 12 dB of gain with an output power at 1 dB gain compression of 10 dBm. Package size is 2.25" x 1.0" x 0.33".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency (GHz): | 0.05 to 40 |
| Frequency Min (GHz): | 0.05 |
| Frequancy Max (GHz): | 40 |
| Gain (dB): | 12 dB Typ |
| Gain Flatness (dB): | ±2.5 dB Typ |
| Noise Figure (dB): | 4.5 dB Typ up to 20 GHz, 5.5 dB Typ up to 40 GHz |
| OP1dB (dBm): | 10 dBm Typ |
| VSWR In/Out: | 2.3:1 Typ - Measured 2.07:1/2.04:1 |
| No External Power Supplies: | Powered through USB |
| Power Connector: | USB Type A Plug |
| Connectors In/Out: | 2.92mm Female |
| Size: | 2.25" x 1.00" x 0.33" |
| Finish: | Painted Blue |
| Driver Installation: | Simply plug the amplifier into any USB Port, and the Amplifier will be powered on |
| Export Classification (ECCN): | EAR99 |
