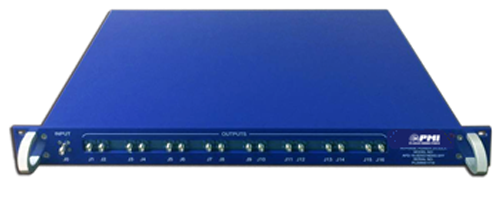

APD-16-0D5G18D0G-SFF Active
16 Way In-Phase Power Divider
Additional Documents
PMI Model APD-16-0D5G18D0G-SFF is a 16 Way, In-Phase Power Divider operating from 0.5 to 18 GHz that offers an insertion loss of 20 dB with over 14 dB of isolation, phase balance is 9° maximum, and the amplitude balance is 2 dB maximum. Housed in a standard 1U 19" chassis measuring 19.0" x 10.06" x 1.73" with SMA female connectors on the front panel.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 16 Way |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Isolation (dB): | 14 dB Max |
| Insertion Loss (dB): | 16 dB Max |
| Insertion Loss (dB) - Measured: | 16 dB Max - Measured 11.5 dB |
| VSWR (In/Out): | 2.0:1 Typ / 2.0:1 Typ |
| Amplitude Balance: | ±2 dB Max |
| Phase Balance: | ±3º Goal, ±9° Max |
| Power Handling: | 10 W Max (Forward) 0.5 W Max (Reverse) |
| Impedance: | 50 Ohm |
| Connectors: | SMA Female |
| Size: | 19.00" x 10.06" x 1.73", 482.60 mm x 255.52 mm x 43.92 mm |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +12 5ºC |
| Operating Humidity: | Up to 90% (Non-Condensing) |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
