APD-16-0R523G-292FF

16-Way Power Divider

Buy Now

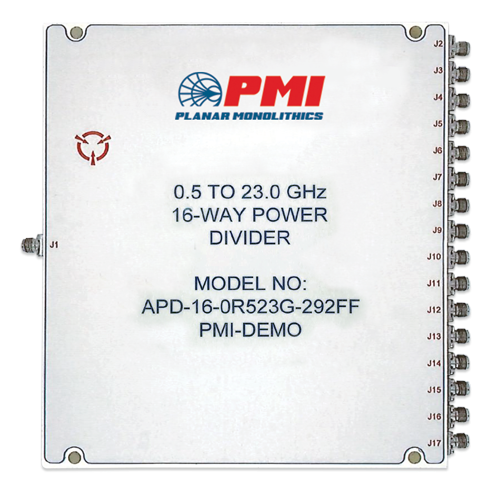

PMI Model: APD-16-0R523G-292FF is a sixteen way power divider operating over the 0.5 to 23.0 GHz frequency range. This model has a maximum insertion loss of 5.0 dB from 0.5 to 18.0 GHz and 7.5dB maximum between 18.0 to 23.0 GHz. The compact 6.2" x 7.1" x 0.43" housing is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 16-Way
Frequency Min: 0.5 Ghz
Frequency Max: 23.0 GHz
Isolation: 0.5 to 1 GHz - 10 dB Typ
1 to 2 GHz - 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 22 GHz - 15 dB Typ
22 to 23 GHz - 10 dB Typ
Insertion Loss: 0.5 to 1 GHz - 2.0 dB Max
1 to 2 GHz - 3.0 dB Max
2 to 8 GHz - 3.0 dB Max
8 to 18 GHz - 5.0 dB Max
18 to 22 GHz - 7.0 dB Max
22 to 23 GHz - 7.5 dB Max
Amplitude Balance: 0.5 to 1 GHz - ±0.5 dB Max
1 to 2 GHz - ±0.5 dB Max.
2 to 8 GHz
±0.5 dB Max.
8 to 18 GHz - ±1.0 dB Max
18 to 22 GHz - ±2.0 dB Max
22 to 23 GHz - ± 2.3 dB Max
Phase Balance: 0.5 to 1 GHz - ±3° Typ
1 to 2 GHz - ±3° Typ
2 to 8 GHz - ±10° Typ
8 to 18 GHz - ±20° Typ
18 to 22 GHz - ±25° Typ
22 to 23 GHz - ±30° Typ
Average Power Into Load VSWR: 25 Watts (+44 dBm)
Connectors: 2.92 mm FEMALE REMOVABLE
Finish: Painted Blue
Size: 6.2" x 7.1" x 0.43"
VSWR Input: 0.5 to 1 GHz - 2.5:1 Typ
1 to 2 GHz - 3.1:1 Typ
2 to 8 GHz - 2.1:1 Max
18 to 22 GHz - 2.1:1 Max
22 to 23 GHz - 2.0:1 Max
VSWR Output: 0.5 to 1 GHz - 1.5:1 Max
1 to 2 GHz - 1.5:1 Max
2 to 8 GHz - 1.8:1 Max
8 to 18 GHz - 1.8:1 Max
18 to 22 GHz - 2.0:1 Max
22 to 23 GHz - 2.0:1 Typ
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
